$49.90

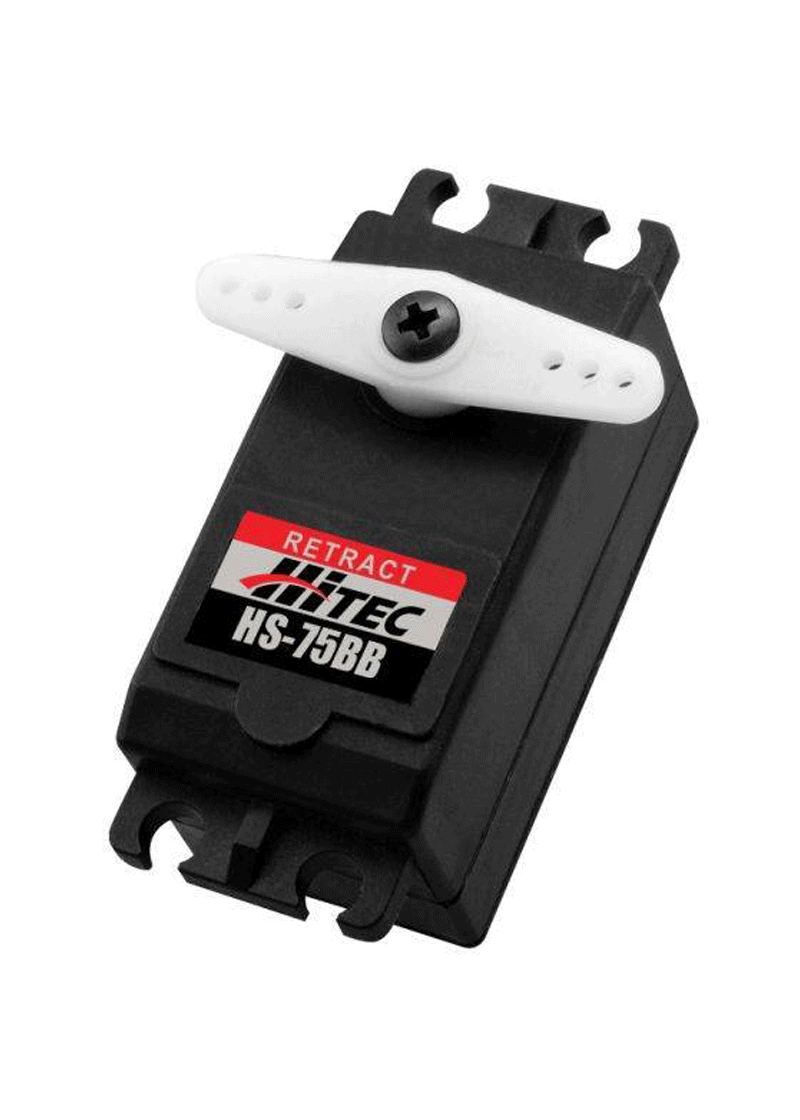

Hitec HS-75BB Retract Servo

or 4 fortnightly payments of $12.48 with Afterpay More info

Features
Low Profile Design
Durable Nylon Gears
Top Ball Bearings
Strong Torque and Precise Movement
Slow Speed for Realistic Retract Action

SKU: HTHS-75BB Categories: ,
  • Description
  • Reviews (0)

Description

Product Description
With its low profile design, strong torque and precision movement, the HS-75BB is a great choice to move your retract gear in a realistic manner that you need. Note, this is a retract or “bang bang” servo and only travels from one end to the other (180 degrees). If you require a proportional servo this size, use the Hitec HS-77BB.

Features
Low Profile Design
Durable Nylon Gears
Top Ball Bearings
Strong Torque and Precise Movement
Slow Speed for Realistic Retract Action

HS-75BB Servo Specifications
Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.45 ~ 0.34
Maximum Torque Range oz. / in. 92 ~ 114
Maximum Torque Range kg. / cm. 6.6 ~ 8.2
Current Draw at Idle 1 mAh
No Load Operating Current Draw 150 mAh
Stall Current Draw 1,000 mAh
Dead Band Width 20 µs
Physical Specifications
Dimensions (Inches) 1.73 x 0.90 x 0.98
Dimensions (Metric) 44.0 x 23.0 x 25.0
Weight (Ounces) 1.23
Weight (Gram) 35.0
Circuit Type HT7003 Analog SMT
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Nylon
Bearing Type Top Ball Bearing
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance Splash Proof
Connector Gauge (AWG) / Strand Count 25 / 40
