$34.00

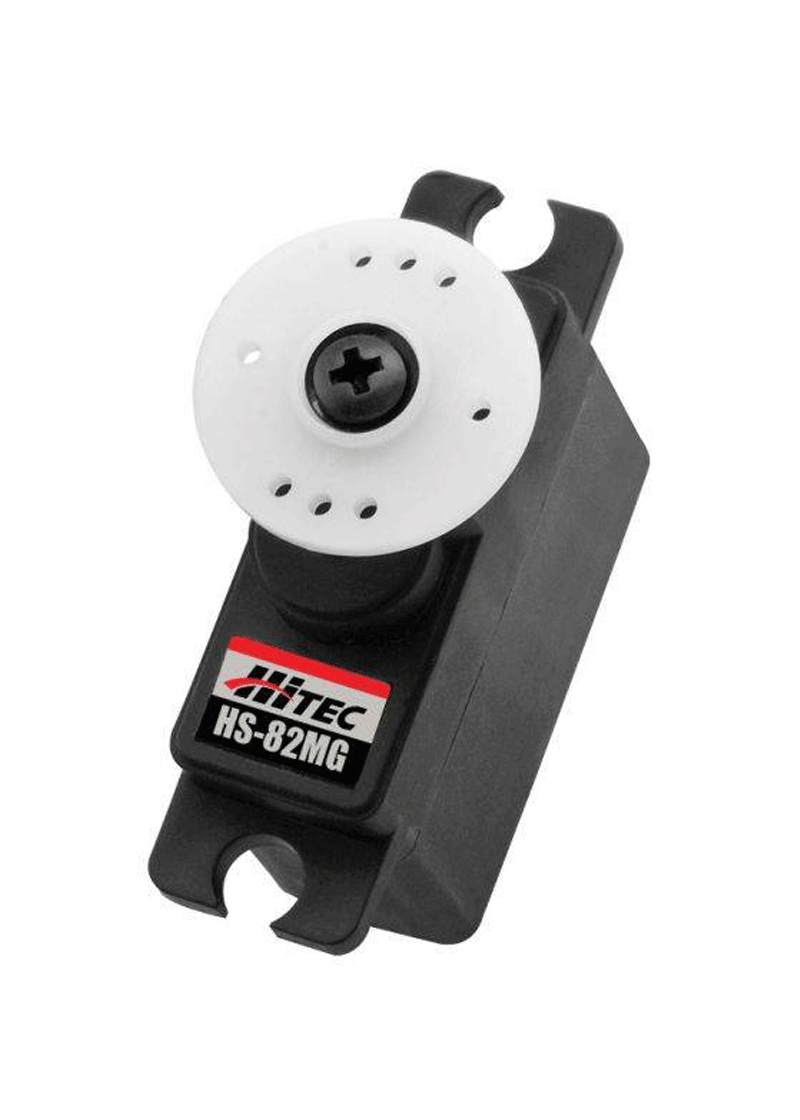

Hitec HS-82MG Standard Metal Gear Micro Servo

or 4 fortnightly payments of $8.50 with Afterpay More info

Features
Top Selling Metal Gear Micro Servo
Strong Three-Pole Ferrite Motor
Rugged Metal Gears

SKU: HTHS-82MG Categories: ,
  • Description
  • Reviews (0)

Description

Product Description
We took one of our top selling servos and made it even better. Based on the ultra popular HS-81MG the HS-82MG gets a new stronger motor and updated electronics for more precise centering. The HS-82MG is perfect for smaller aircraft and helicopters where a durable geartrain is required.

Features
Top Selling Metal Gear Micro Servo
Strong Three-Pole Ferrite Motor
Rugged Metal Gears

HS-82MG Servo Specifications
Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.12 ~ 0.10
Maximum Torque Range oz. / in. 39 ~ 47
Maximum Torque Range kg. / cm. 2.8 ~ 3.4
Current Draw at Idle 10 mAh
No Load Operating Current Draw 280 mAh
Stall Current Draw 1,800 mAh
Dead Band Width 5 µs
Physical Specifications
Dimensions (Inches) 1.17 x 0.47 x 1.16
Dimensions (Metric) 29.8 x 12.0 x 29.6
Weight (Ounces) 0.66
Weight (Gram) 19.0
Circuit Type HT7003 Analog SMT
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Metal
Bearing Type None
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 28 / 20
