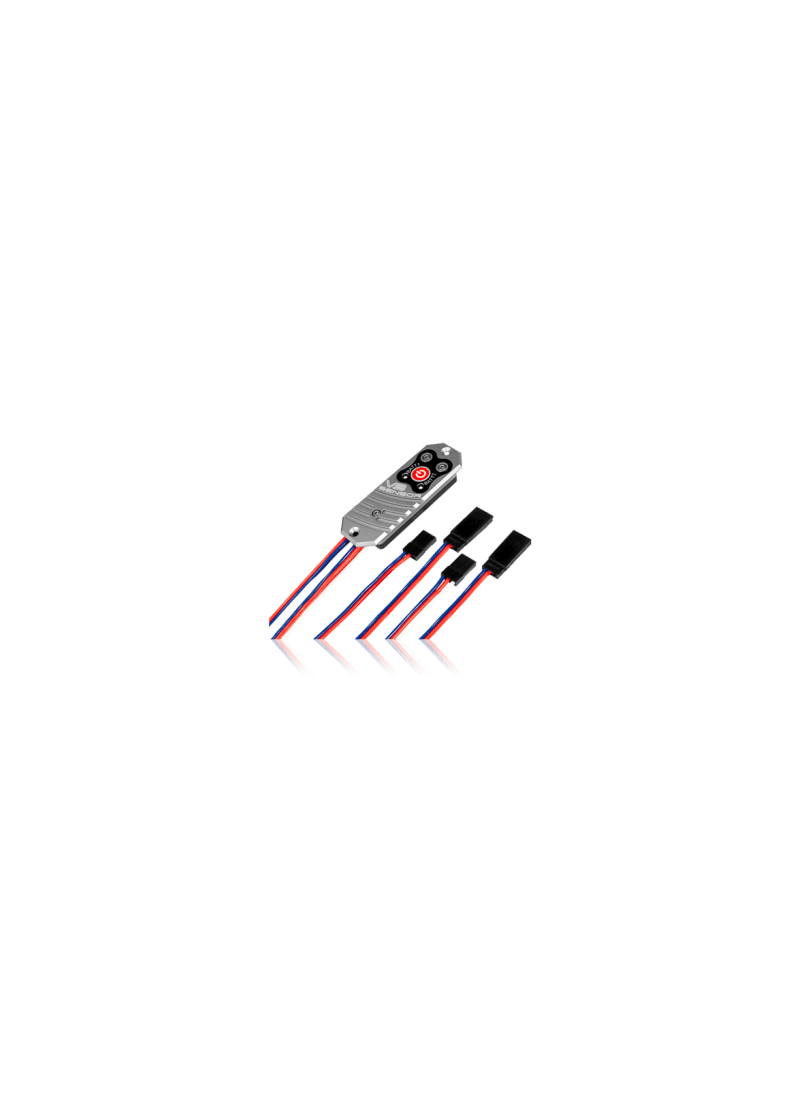

Powerbox Sensor V3 JR/JR
Powerbox Sensor V3 JR/JR - Image 2
, , ,

Powerbox Sensor V3 JR/JR

Availability:

Available on backorder

Add to Wishlist
Compare

$170.00

Available on backorder

Compare

Features

  • High-performance battery backer
  • Ultra-light unit, compact format
  • Double regulated output voltage
  • Redundant switch and regulator circuitry
  • User-selectable output voltage: 6.0 V or 7.8 V
  • Separate RGB LED voltage indicators for each battery
  • Telemetry support for CORE systems
  • Supports 4 different battery types: 2s LiPo, 2s LiIon, 2s LiFePo and 5s NiMH
  • Regulator monitoring
  • Suppression of servo feedback currents

Technical Data

Operating voltage4.0 V – 9.0 V
Power supply2s LiPo, 2s LiIon, 2s LiFePo, 5s NiMh
Current drain Power-on state30 mA
Current drain Standby10 µA
Maximum load currentPeak 2x 10 A
Drop-out voltage0.25 V
Output voltage6.0 V/ 7.8 V regulated
Dimensions65 x 26 x 11 mm
SKU: 6330 Categories: , , ,
