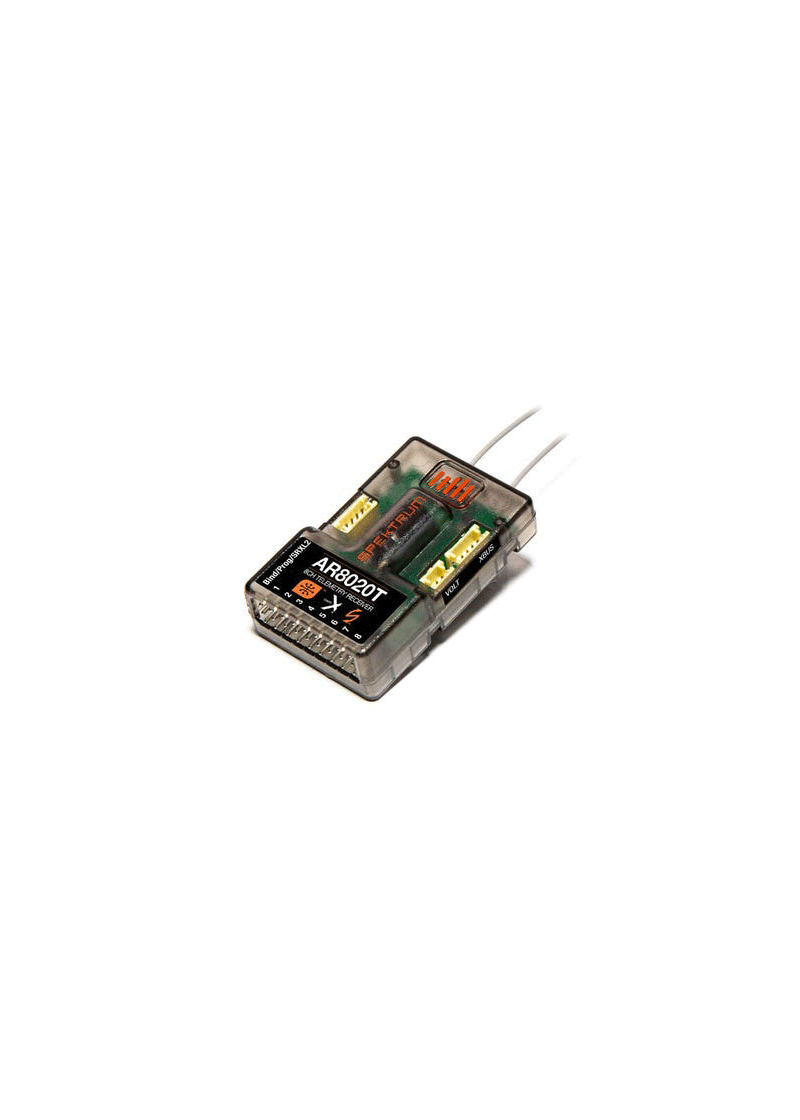

Spektrum AR8020T 8ch Air Receiver with Telemetry

Availability:

1 in stock (can be backordered)


LatitudePay

The Spektrum™ AR8020T 8 Channel Receiver is a DSM2® and DSMX® capable receiver with a compact footprint to fit in a wide range of aircraft. It features full-range telemetry, integrated barometer to provide altitude and vario telemetry data without additional purchase

$180.00

1 in stock (can be backordered)

Compare

Features
Compatible with all Spektrum™ DSM2 and DSMX transmitters
Compact footprint fits most parkflyer size, sport class and giant scale models
Features full range telemetry, integrated barometer to provide altitude and vario telemetry data without the need of additional sensors
Bind button allows for easy binding and eliminates the use of bind plug
Two external antennas will ensure secure RF coverage from all angles of the aircraft
Additional RF path redundancy with an additional SRXL2 Remote Receiver (sold separately)
Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need of modules, links and wires.
End pin output pins for easy and compact installation
Forward Programming capable for setting individual failsafe parameters per channel and more
Reviews
LEAVE A REVIEW

Product Information
Included XBUS and temperature ports can be used to add additional telemetry sensors available separately. It also features an SRXL2 port for an SRXL2 Remote Receiver, available separately, to add additional RF path redundancy. An SRXL2/Bind/Program/Batt servo header is available to connect smart devices, program and update the receiver, bind with a traditional bind plug, or connect a battery. The AR8020T also features a bind button for easy binding with no plugs necessary and offers both “SmartSafe” technology and Hold Last as well as preset failsafe types set through forward programming. Also, the throttle port is Smart ESC compatible right out of the box.

SMART TELEMETRY

To enjoy the full benefits of Smart™ technology, use the AR8020T receiver with a Smart ESC and telemetry capable Spektrum DSMX® transmitter. Vital telemetry data such as current, voltage, temperature and RPM is sent directly to your transmitter in real-time. For more information on Smart Technology please visit our Spektrum Smart Technology page.

INTEGRATED BAROMETER

The Spektrum™ AR8020T receiver features an integrated barometer (built-in pressure sensor) to provide altitude and vario telemetry data without the need to purchase additional sensor modules.

Specs
Antenna Length
6.1″ (155 mm)
Application
Air
Band
2.4GHz
Bind Method
Bind Button
Channels
8
Failsafe
Yes
Input Voltage
3.5 – 9V
Product Height
0.59″ (15 mm)
Product Length
1.92″ (49 mm)
Product Weight
0.56 oz (16 g)
Product Width
1.18″ (30 mm)
Range
Full
View All Specifications

SKU: SPMAR8020T Categories: , ,
