Dualsky 480 Tuning Combo w/motor & ESC

Or 10 Interest free payments from $7.80 with LatitudePay logo What's this?

or 4 fortnightly payments of $19.50 with Afterpay More info

Power up with this brilliant tuning combo from Dualsky, ideal for 480-size, .10-class RC planes and helicopters.

1 in stock (can be backordered)

  • Description
  • Reviews (0)

Description

Features

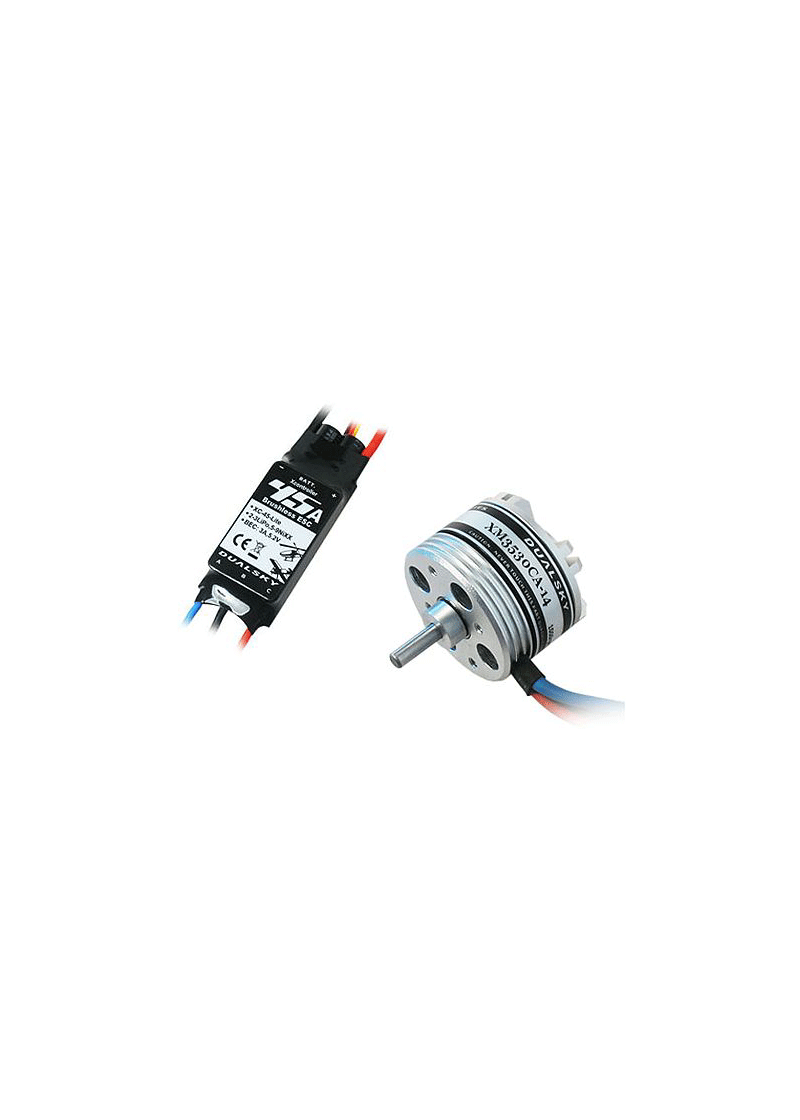

  • Comes with XM2834CA-9 motor and XC-45-Lite ESC
  • Ideal for 480-size RC planes or helicopters
  • Compatible with the V2 programming card

Product Information

This fantastic tuning combo from Dualsky offers a XM3530CA-14 Motor and XC-45-Lite ESC.  This package is ideal for 480-size, .10-class RC planes or helicopters.  It is simple to operate and compatible with the V2 programming card.  Give your 480-size model the best hardware available.  Order this outstanding tuning combo from Dualsky now.

Specs

Motor RPM/V (KV)
1000
Motor Stator Diameter (mm)
28
Motor Magnet Length (mm)
8
Motor Shaft Diameter (mm)
4
Motor Mounting Holes Pitch
19/25
Motor Weight (g)
74
Motor Resistance (Ri)(mOhm)
102
Motor Idle Current (Io) @10V (A)
0.75
Motor No.of Cells (LiPo)
2.3
Motor Max. Efficiency Current (A)
14
Motor Max. Burst Current (15s)(A)
24
Motor Approximate Max. Power (15s) (W)
250
Motor Input Connectors
DB3
Motor Recommended ESC
XC2512BA
Motor Prop. Range
8×5, 12×6
Motor App. Class
480-size, 10-class
ESC Dimensions (L x W x D) (mm)
67x 25x 7
ESC Weight, with wires (g)
38
ESC Number of Cells (NiXX)
5-9 cells, 6-10.8V
ESC Number of Cells (LiPo)
2-3s, 7.4-11.1V
ESC Resistance(Ri)(Ohm)
0.0026
ESC Max Cont. Current & Max Cont.Output
45A, 500W
ESC Max Burst Current & Max Burst Output
60A, 666W
ESC BEC / Dissipative Power
5.2V/3A (Linear)
ESC Programmable
Throttle + ProgCARD V2
ESC Signal Wire
300MM JR
