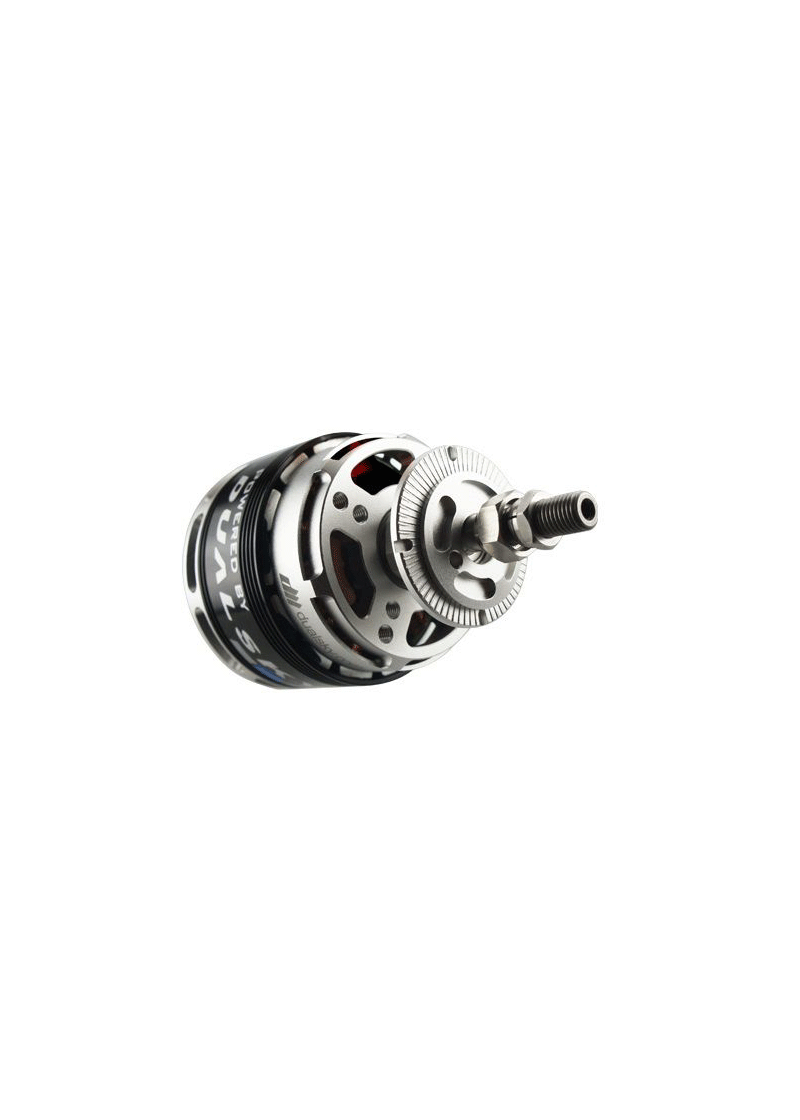

Dualsky XM6352DA-26 Competition F3A motor, 220kV

Availability:

Available on backorder


Dualsky XM6352DA-26 Competition F3A motor, 220kV

$378.00

Available on backorder

Compare

XM6352DA V4, corresponding to 3000 watts class, suitable for lightweight F3A airplanes and up to 12kg gliders
New curved magnets. Torque in the middle RPM range is increased by 12% to 15% (compared to DA V3 motor)
Hollow shaft and lightweight parts, the overall weight is reduced by 7-10%.
With 3 EZO bearings and precisely balanced rotors, the motors can be maintenance-free up to 1000 flights.
Optimized rear support bearing (mount)
The total length of the two types of motor are uniform, the accessories are interchangeable, and they can be replaced seamlessly.
Specs
RPM/V (KV)
220
Stator (DxL)
5322
Weight
490g
Ri (mOhm)
43
Io @ 10V (A)
0.7
Voltage
40 V
Peak Current (W)
75 A
Peak Power (W)
3000
Torque (N*M)
4.07

SKU: DSXM52030 Categories: ,
