$20.00

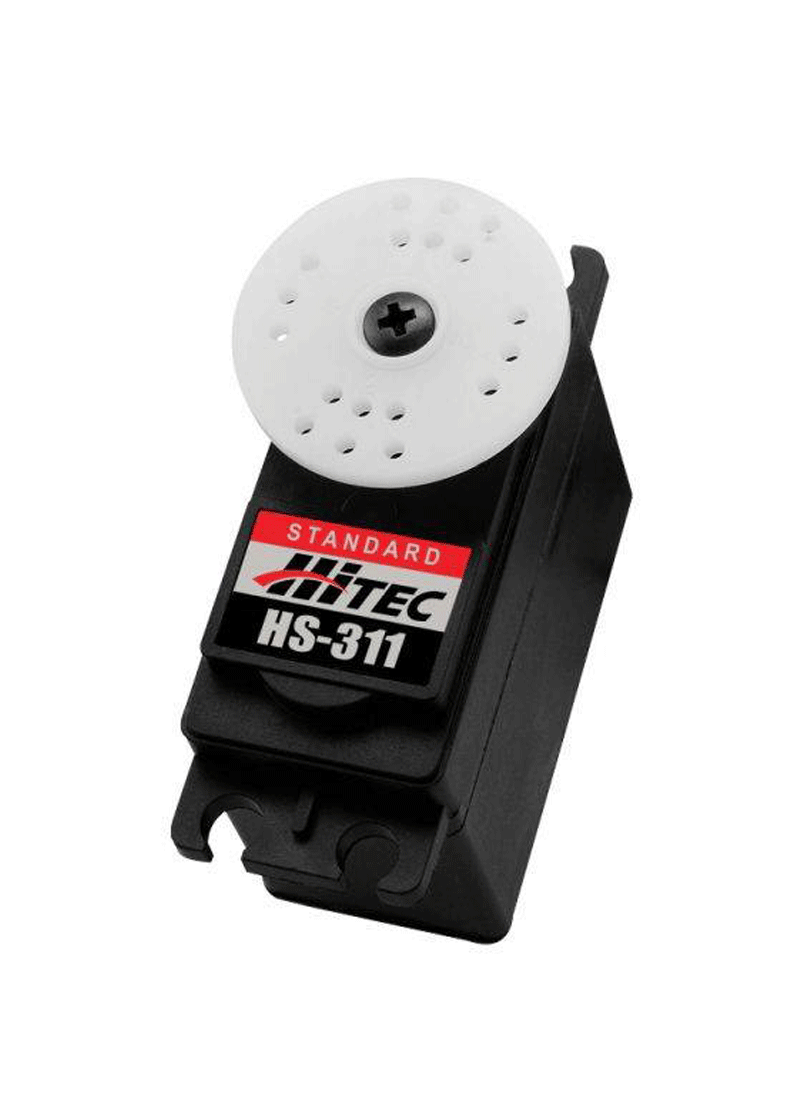

Hitec HS-311 Standard Economy Servo

or 4 fortnightly payments of $5.00 with Afterpay More info

Features
Our Low Cost Standard Size Servo
Reliable Three-Pole Ferrite Motor
Durable Resin Gears
Popular Selling Servo

SKU: HTHS-311 Categories: ,
  • Description
  • Reviews (0)

Description

Product Description
The HS-311 sport servo provides the novice modeler all the performance and reliability you would expect to find in a more expensive servo. Combined with precise resin gears and SMT circuitry, the HS-311 represents a remarkable value in today’s R/C market.

Features
Our Low Cost Standard Size Servo
Reliable Three-Pole Ferrite Motor
Durable Resin Gears
Popular Selling Servo

HS-311 Servo Specifications
Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.19 ~ 0.15
Maximum Torque Range oz. / in. 42 ~ 49
Maximum Torque Range kg. / cm. 3.0 ~ 3.5
Current Draw at Idle 7.7 mAh
No Load Operating Current Draw 180 mAh
Stall Current Draw 800 mAh
Dead Band Width 5 µs
Physical Specifications
Dimensions (Inches) 1.57 x 0.78 x 1.43
Dimensions (Metric) 40.0 x 20.0 x 36.5
Weight (Ounces) 1.51
Weight (Gram) 43.0
Circuit Type HT7003 Analog SMT
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Nylon
Bearing Type None
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 25 / 40
