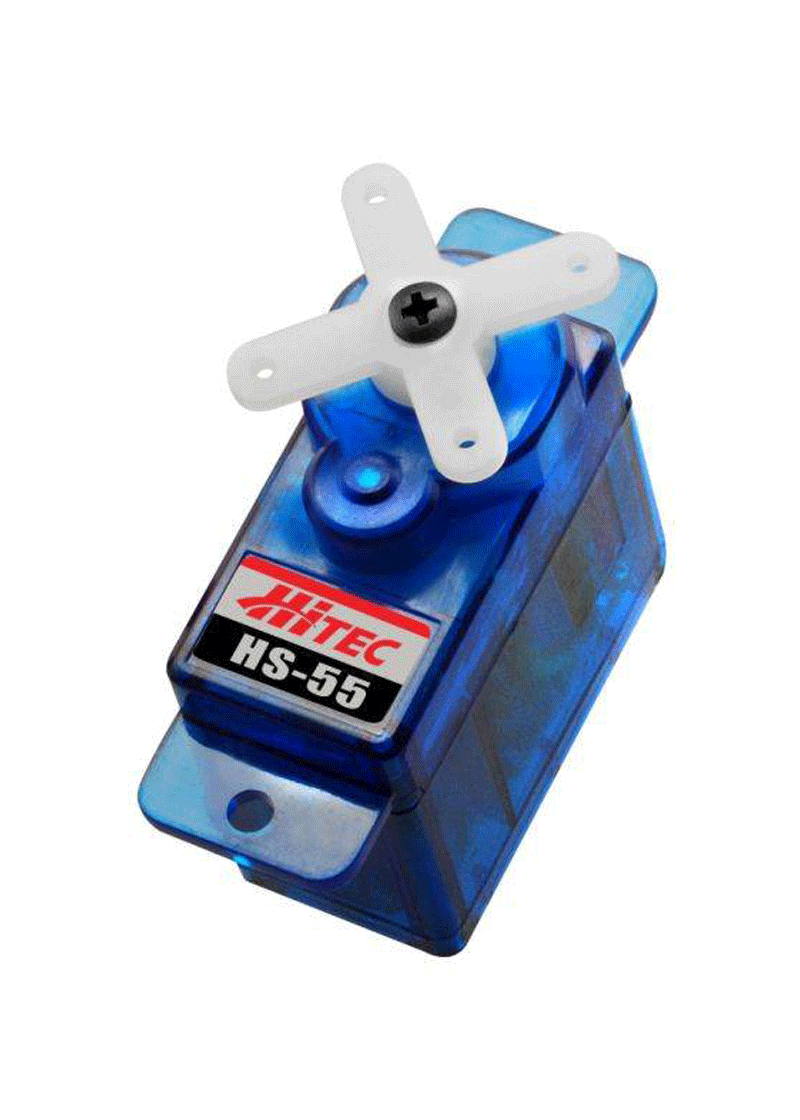

Product Description
The HS-55 set the standard for affordable performance, offering precision components that have been engineered to provide long lasting trouble free service! Featured in a hundred model aircraft reviews worldwide, the HS-55 is your best choice when it comes to controlling ”smaller” Electric’s and Park Flyers.
Features
Affordable Performance
Precision Components
Strong, Long-Lasting Nylon Gears
Market’s Most Reliable Micro Servo
Most Popular Servo
HS-55 Servo Specifications
Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.17 ~ 0.14
Maximum Torque Range oz. / in. 15 ~ 18
Maximum Torque Range kg. / cm. 1.1 ~ 1.3
Current Draw at Idle 5.5 mAh
No Load Operating Current Draw 150 mAh
Stall Current Draw 450 mAh
Dead Band Width 8 µs
Physical Specifications
Dimensions (Inches) 0.89 x 0.45 x 0.94
Dimensions (Metric) 22.8 x 11.6 x 24.0
Weight (Ounces) 0.28
Weight (Gram) 8.0
Circuit Type HT7003 Analog SMT
Motor Type Coreless Metal Brush
Gear Material Nylon
Bearing Type None
Output Shaft (type / Ømm) Feather 15 / 8
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 28 / 20
