$54.90

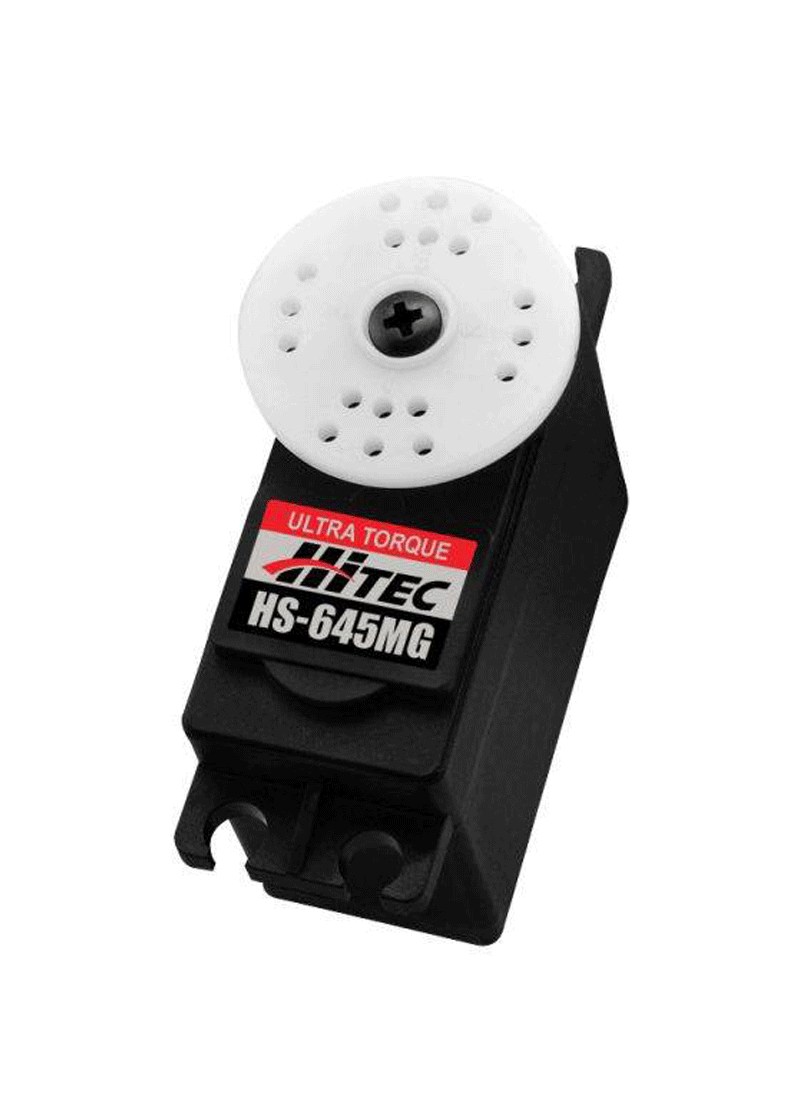

Hitec HS-645MG High Torque, Metal Gear Premium Sport Servo

or 4 fortnightly payments of $13.73 with Afterpay More info

Features
Top Selling High Torque Metal Gear Servo
Strong Three-Pole Ferrite Motor
Heavy Duty Metal Gear Train Featuring our Revolutionary Metal/Plastic First Gear (MP Gear)
Dual Ball Bearing-Supported Output Shaft

SKU: HTHS-645MG Categories: ,
  • Description
  • Reviews (0)

Description

Product Description
The powerful HS-645MG is one of Hitec’s most popular servos. It’s the perfect choice for those larger sport planes or monster trucks and buggies requiring a durable high torque servo. Featuring our unique M/P and metal gear train technology, the HS-645MG offers one of the strongest gear trains available in any servo.

Features
Top Selling High Torque Metal Gear Servo
Strong Three-Pole Ferrite Motor
Heavy Duty Metal Gear Train Featuring our Revolutionary Metal/Plastic First Gear (MP Gear)
Dual Ball Bearing-Supported Output Shaft

HS-645MG Servo Specifications
Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.24 ~ 0.20
Maximum Torque Range oz. / in. 107 ~ 133
Maximum Torque Range kg. / cm. 7.7 ~ 9.6
Current Draw at Idle 9.1 mAh
No Load Operating Current Draw 450 mAh
Stall Current Draw 2,500 mAh
Dead Band Width 8 µs
Physical Specifications
Dimensions (Inches) 1.59 x 0.77 x 1.48
Dimensions (Metric) 40.6 x 19.8 x 37.8
Weight (Ounces) 1.94
Weight (Gram) 55.2
Circuit Type HT7003 Analog SMT
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Metal
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 22 / 60

BUY 4 for $183.60

Reviews

There are no reviews yet. Add a review
