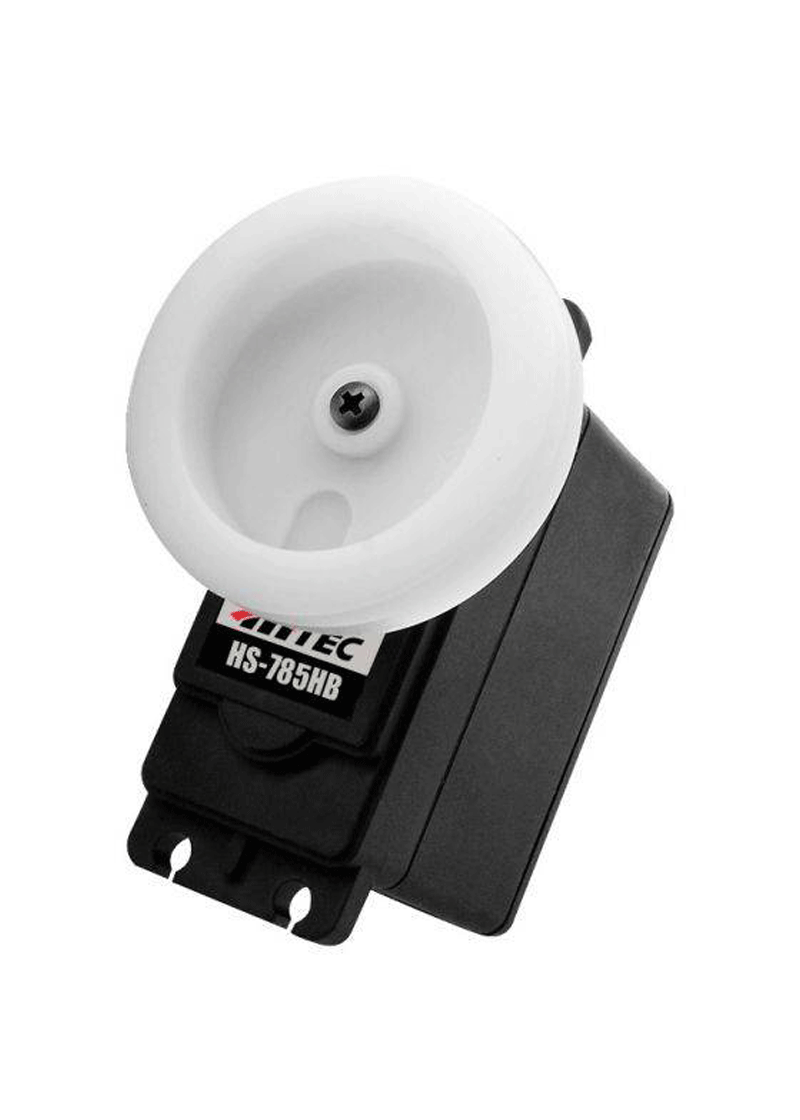

Hitec HS-785HB Karbonite, 3.5 Turn Winch Servo

Or 10 Interest free payments from $5.99 with LatitudePay logo What's this?

or 4 fortnightly payments of $14.98 with Afterpay More info

Features
Large Drum Wheel with 3.5 Revolutions of Travel
Strong Karbonite Gear Train
Dual Ball Bearing-Supported Output Shaft
Water and Dust-Resistant Case

SKU: HTHS-785HB Categories: ,
  • Description
  • Reviews (0)

Description

Product Description
The HS-785HB sail winch servo with its large drum wheel has 3 1/2 revolutions of travel for hauling in even the largest of sails. With its dual ball bearing supported output shaft the HS-785HB will provide years of reliable service.

Features
Large Drum Wheel with 3.5 Revolutions of Travel
Strong Karbonite Gear Train
Dual Ball Bearing-Supported Output Shaft
Water and Dust-Resistant Case

HS-785HB Servo Specifications
Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 1.68 ~ 1.38
Maximum Torque Range oz. / in. 153 ~ 183
Maximum Torque Range kg. / cm. 11.0 ~ 13.2
Current Draw at Idle 8 mAh
No Load Operating Current Draw 250 mAh
Stall Current Draw 1,800 mAh
Dead Band Width 5 µs
Physical Specifications
Dimensions (Inches) 2.32 x 1.14 x 1.96
Dimensions (Metric) 59.0 x 29.0 x 50.0
Weight (Ounces) 3.88
Weight (Gram) 110.0
Circuit Type HT7003 Analog MosFet
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Karbonite
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance Splash Proof
Connector Gauge (AWG) / Strand Count 22 / 60
