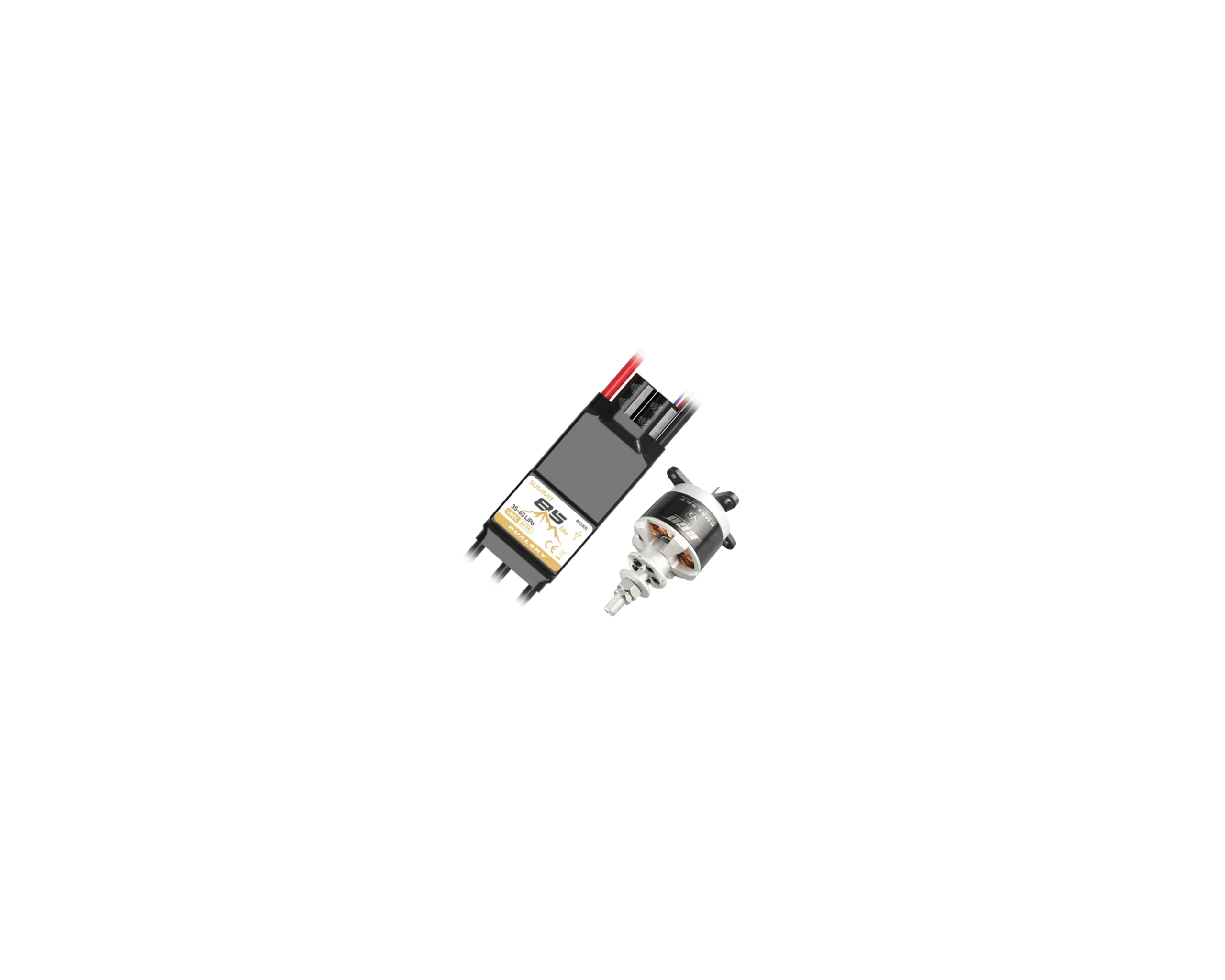

This Dualsky 50E Tuning Combo with 4120C V2 560kv Motor and Summit Lite 85A ESC is compatible with 5S-6S LiPo batteries and is designed for .65-.70 4-Stroke models.
- Includes new generation Summit Lite ESC
- Selectable rotation direction
- Program the ESC using the Dualsky USB Link Multi Purpose (DSB22382, sold separately)
- Integrated high-current UBEC with excellent peak performance
- Low voltage, overheat, throttle, current, and low RPM protection.
Motor Specs
- KV
- 560
- Turns
- 7
- Weight
- 280 g
- Dimensions (D x L)
- 49.5 x 45.2 mm
- Slots & Poles
- 12N14P
- Ri (mOhm)
- 22
- Io @ 10V
- 1.3 A
- No. of Cells
- 5 – 6
- Max. Efficiency Current
- 42 A
- Max. Burst Current (15S)
- 70 A
- Max. Power (15S)
- 1400 W
- Max. Torque (N*M)
- 1.43
- Shaft Diameter
- 6 mm
- Mounting Holes Pitch
- 30/30
- Input Connectors
- GC4.0
- Recommended ESC
- XC8018BA
- Propeller
- 5S: 16x9E, 15x8E
6S: 14x6E, 13x8E - Class
- .65-.70 4-Stroke
ESC Specs
- Dimensions (LxWxH)
- 84 x 36 x 9.5mm (w/o wire)
- Weight (w/ wire)
- 84g
- Number of Cells
- 3S-6S LiPo, 11.1V-22.2V
- Continuous Current
- 85A
- Burst Current
- 110A
- Resistance (Ri) (mOhm)
- ~2.4 milliohm
- Battery eliminate circuit BEC
- 6.0V, Switching mode, 7A const./10A peaks
- Signal & Frequency
- Default = PWM(upto 333Hz), THR calibration Enabled
- Timing System
- Programmable (Default=18°)
- Motor Direction
- Normal – Reversed – Bidirectional (4D flight & EDF Braking)
- Programming
- USBLINK MP (BLHeli32_Suite)
- Start Power
- 50% (Programmable)
- Work Frequency
- LOW = 24KHZ, High = 24KHz (Programmable)
- Telemetry
- ON (Auto telemetry enabled, protocol=KISS)
- Energy Recovery
- YES (Default-Disable, freewheel)
- Brake On Stop
- Default=OFF (Adjustable)
- Maximum Speeds
- PWM at 8KHz: 510k erpm, Multishot at 16kHz: 450k erpm / Dshot at 8kHz: 470k erpm / Dshot at 16kHz with sine: 280k erpm
- Low Voltage Protection
- Programmable (Default=3.00V/cell)
- Acceleration
- Default =125ms (Programmable)
- Overheat Protection
- YES(Default=140 C)
- Water & Dust Proof
- IP43
- Beacon Beeps
- YES, 20 Mins
- Input Wires
- 12AWG, 200mm
- Wires to Motor
- 12AWG, 100mm w/ DB4F
- Signal Wires
- JR, 350mm + 1pin telemetry
- Tested Motors
- Dualsky EG, EA V3 series, Dualsky EVO V2 line, Dualsky GA line. * Please follow the parameter compatibility requirements of the motor
- Applications
- Middle class electric powered gliders, 3D/ sports aircraft, F3As and Fixed wing UAVs/ eVOLs
