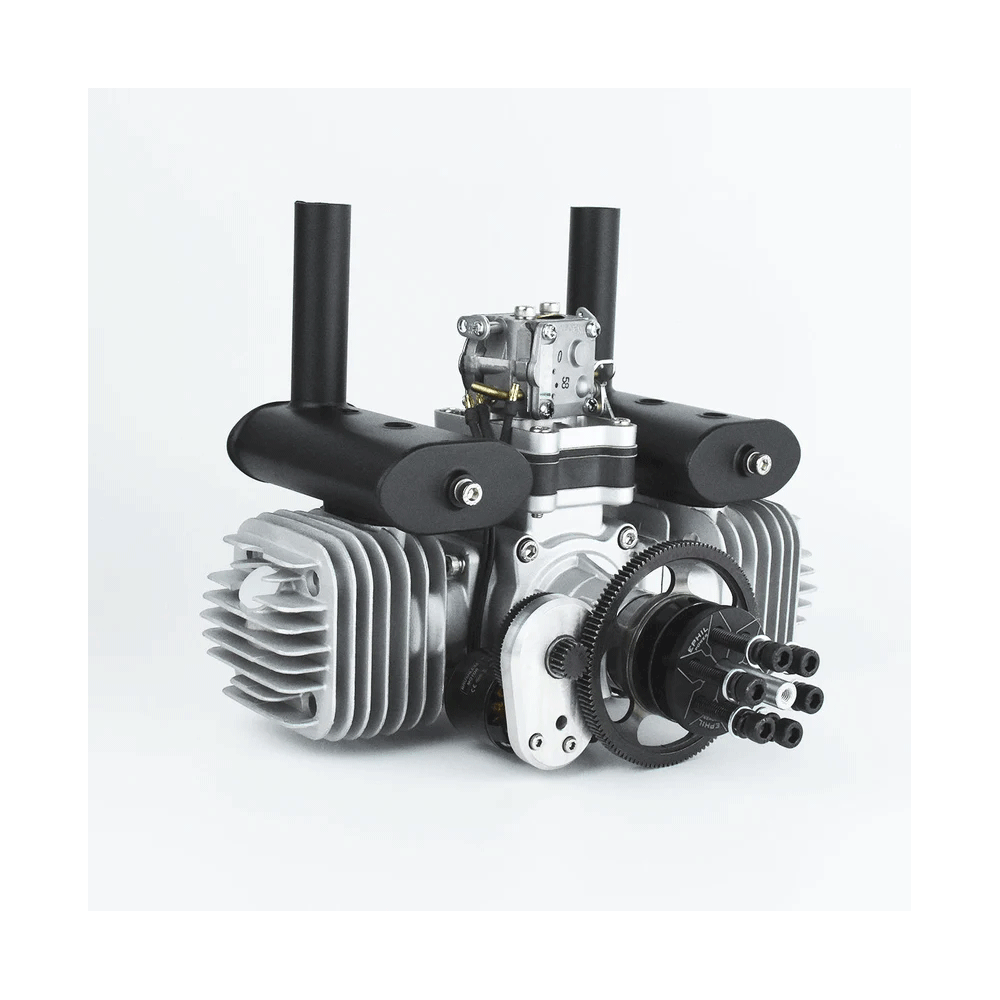

EPHIL 123cc-T Pro Gasoline Engine w/ E-Starter; Spark Plugs & Electronic Ignition

123cc-T Pro

Displacement: 123cc (7.5 cu in)

Performance: 12.2 HP

Speed Range: 1500-6650 RPM  (Test Propeller-27*10)

Bore: 47 mm (1.85 in)

Stroke: 35 mm (1.38 in)

Static Thrust: 26.8 kg @ 100 m ALT

Static Thrust: 23.8 kg @ 1800 m ALT

Compression ratio: 8:1

Lubrication ratio: 30:1 (Fuel: 2-Stroke Motor Oil)

Ignition Voltage: 6-14 V

Spark Plug Type: CM6 Iridium Spark Plug

Recommended Propeller: 26×10; 26×12; 27×10; 28×10

Weight of Main Engine: 2677g

Weight of Muffler Set: 228g (L&R Mufflers; Screws)

Weight of Aluminum Standoffs Set: 130g (Including Screws)

Weight of Spark Plug: 13.5g*2 (CM6*2)

Weight of Starter: 253g

Weight of ESC: 36g

Weight of CDI (Ignition): 173g

Total Weight: 3524g (7.77 lb)
