Tamiya 1/10 scale Mini Cooper Racing (MB-01 CHASSIS)
Tamiya 1/10 scale Mini Cooper Racing (MB-01 CHASSIS) - Image 2
, ,

Tamiya 1/10 scale Mini Cooper Racing (MB-01 CHASSIS)

Availability:

1 in stock (can be backordered)
Add to Wishlist
Compare

$240.00

1 in stock (can be backordered)

Compare
MINI trademarks used are licensed by BMW AG.

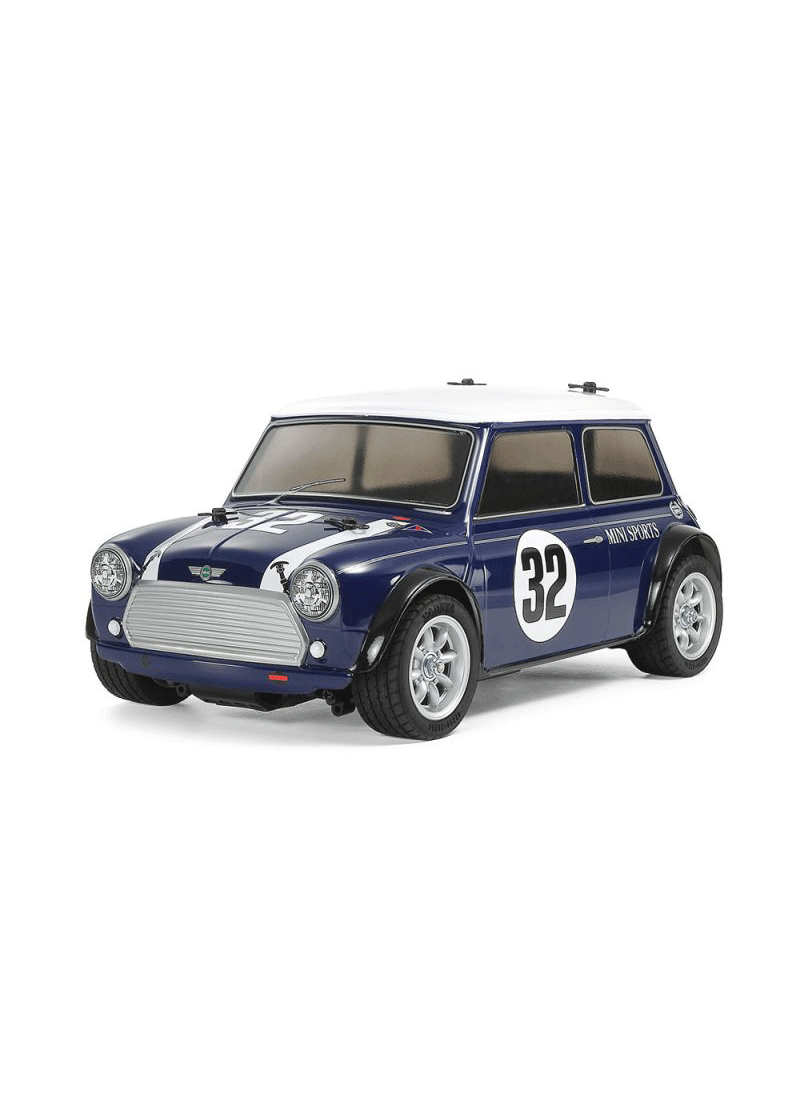

Length: 315mm. Image shows assembled and painted kit.



About 5.3 million units of the Mini were produced from 1959 until 2000 – remarkably without major model changes – and this legendary little car even achieved second place in the Car of the Century award for the best cars of the 20th century. Its front-wheel drive layout was rare for its time, and it featured ergonomic body structure with compact mechanics and maximum interior space, as well as frisky performance. In 1961, the sporty Mini Cooper joined the line-up and with great racing success, the car gained even greater popularity around the world. This assembly kit creates a radio control model assembly kit depicting the car, with stickers included for the bonnet stripes, body-side pinstripes and racing numbers. 8-spoke wheels are paired with 60D radial tires.

The MB-01 Chassis
The compact, 2WD MB-01 chassis gives a choice of three types of wheelbase, and front- or rear- wheel drive system. This model employs a front-wheel drive setup. Without removing battery pack, motor and R/C equipment setups from the center frame, simply change attachment directions of final gears and steering linkage to switch between front- and rear-wheel drive; low or high motor position can be chosen for rear-wheel drive cars. The 4-wheel double wishbone suspension features symmetrical structure and friction dampers. Unitized sections such as motor mount, final gears and suspension facilitate ease of assembly and effective maintenance.

Specifications
★Length: 315mm, width: 167mm, height: 140mm ★Wheelbase: 210mm (Short) ★Tread: 140mm (front & rear) ★Tire width/diameter: 25/59mm (front and rear) ★Bathtub type chassis ★Front-wheel drive ★4-bevel differential gear ★3-piece steering tie-rod ★4-wheel double wishbone suspension ★Friction dampers ★Gear ratio = 5.83:1 (using kit 29T pinion) ★Type 540 motor ★ESC included for export.

Separately Required Items
★2-channel R/C system w/ESC ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger

  • A polycarbonate body recreates the instantly recognizable Mini form – here with racy overfenders.

  • The front Mk-II grille and rounded headlights are accurately depicted.

  • Stickers are used for white stripes, racing numbers, bonnet pin and more.

  • The bumperless rear features depictions of rectangular taillamps and the large rear windshield.

  • 8-spoke wheels are paired with treaded 60D radial tires.

  • The compact MB-01 chassis. For this model, it is assembled with a short wheelbase: 210mm.

  • The model features a three-piece steering tie-rod setup with the servo in the front-left.

  • The four-wheel double wishbone suspension uses symmetrical arms.

  • The motor resides in the front-right, with power going to the wheels via propeller shaft and the front differential.

  • The motor mount is assembled as a unit, and secured to the chassis using two screws.

  • The 4-bevel gear differential is the same as that on the TT-02; this chassis is compatible with TT-02 Hop-Up Option differentials.

  • The flip-up battery holder gives quick access.

  • The Mini Cooper Racing uses a 210mm wheelbase. Change sub-deck and lower deck attachment positions to alter the chassis wheelbase.

  • A close-up on the coil sprung dampers on the rear suspension.

  • This versatile chassis can be assembled into three wheelbases and two drivetrain layouts.
SKU: T58747 Categories: , ,
