Dualsky 450 Tuning Combo w/motor & ESC

Or 10 Interest free payments from $7.50 with LatitudePay logo What's this?

or 4 fortnightly payments of $18.75 with Afterpay More info

Overview

Give your 450-size RC plane or helicopter the edge with this tuning combo from Dualsky, complete with a motor and ESC.

1 in stock (can be backordered)

  • Description
  • Reviews (0)

Description

Features

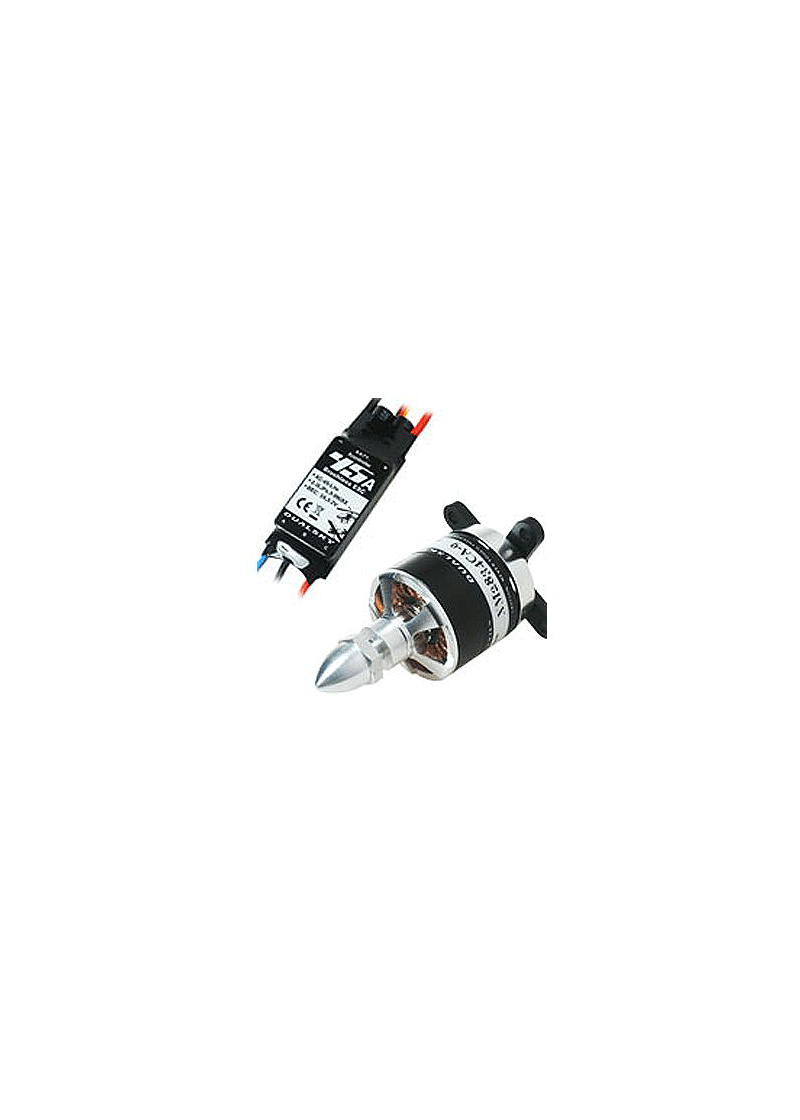

  • Comes with XM2834CA-9 motor and XC-45-Lite ESC
  • Ideal for 450-size RC planes or helicopters
  • Compatible with the V2 programming card

Product Information

This brilliant tuning combo from Dualsky offers a XM2834CA-9 Motor and XC-45-Lite ESC.  This package is ideal for 450-size RC planes or helicopters.  It is easy to operate and compatible with the V2 programming card.  Give your 450-size model the best components.  Order this fantastic tuning combo from Dualsky today.

Specs

Motor RPM/V (KV)
980
Motor Stator Diameter (mm)
22
Motor Magnet Length (mm)
16
Motor Shaft Diameter (mm)
3.2
Motor Mounting Holes Pitch
16/21
Motor Weight (g)
70
Motor Resistance (Ri)(mOhm)
81
Motor Idle Current (Io) @10V (A)
0.70
Motor No.of Cells (LiPo)
2-3
Motor Max. Efficiency Current (A)
17
Motor Max. Burst Current (15s)(A)
24
Motor Approximate Max. Power (15s) (W)
260
Motor Input Connectors
DB3
Motor Recommended ESC
XC2512BA
Motor Prop. Range
10×5 to 12×6
Motor App. Class (g)
600-1200
Dimensions (L x W x D) (mm)
67x 25x 7
Weight, with wires (g)
38
Number of Cells (NiXX)
5-9 cells, 6-10.8V
Number of Cells (LiPo)
2-3s, 7.4-11.1V
Resistance(Ri)(Ohm)
0.0026
Max Cont. Current & Max Cont.Output
45A, 500W
Max Burst Current & Max Burst Output
60A, 666W
BEC / Dissipative Power
5.2V/3A (Linear)
Programmable
Throttle + ProgCARD V2
Signal Wire
300MM JR
